Honeycomb Stainless Steel Air Flow Straightener / Steel Honeycomb Wind Tunnel

Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd, the leading manufacturer in producing high-quality shielding products including ventilation panels, steel honeycomb cores, honeycomb air flow straightener and honeycomb seals at competitive price.

CONTACT NOW down load to pdf

Details

Tags

Product Introduction

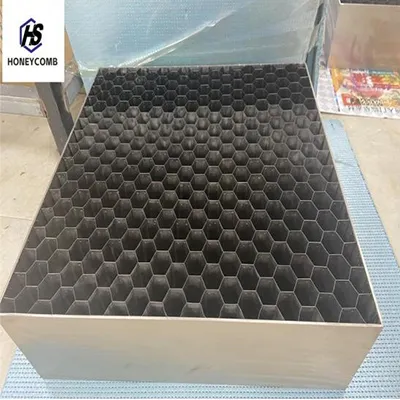

Honeycomb Air flow straightener: Honeycomb has been used successfully for many years as means of straightening ad directing air flow or changing turbulent flow into laminar flow. Such as automobiles, aircraft, missiles, aerodynamic effects, air resistance, heat resistance, and pressure resistance testing of buildings, high-speed trains, and ships.

Product Application

The main function of the honeycomb air flow straightener is to stabilize the air flow and flow rate to achieve measurement accuracy. The thin cell walls provide an array of straight passageways with a maximum percent open area (95-99%), which results in a very low pressure drop and reduced turbulence.

A wind tunnel is a research tool for aerodynamics. A wind tunnel is a tube that creates artificial airflow and is used to study the aerodynamic effects of air flowing through objects. In addition to being mainly used in the design fields of automobiles, aircraft, and missiles (especially cruise missiles, air-to-air missiles, etc.), wind tunnels are also suitable for air resistance, heat resistance, and pressure resistance testing of buildings, high-speed trains, and ships.

Wind tunnels are machines in which objects are held stationary inside a tube, and air is blown around it to study the interaction between the object and the moving air. They are used to test the aerodynamic effects of aircraft, rockets, cars, and buildings. Different wind tunnels range in size from less than a foot across, to over 100 feet (30 m), and can have air that moves at speeds from a light breeze to hypersonic velocities.

Metal honeycomb features: high shielding effectiveness, high Anti-corrosion, no rust, Good sound insulation effect, high ventilation effect.

Hengshi honeycomb data table (mm)
Material	Carton steel, 304 stainless steel, 316L, Hastelloy X, Haynes 214, Aluminum, Brass, Copper, etc
Foil thickness	0.05, 0.07, 0.076, 0.1, 0.13, 0.15, 0.2mm
Core size	0.8, 1.0, 1.2, 1.6, 2.0, 2.2, 2.4, 2.5, 3.0, 3.2, 4.2, 4.8, 5.0, 5.2, 5.2, .....6.0, ..8,...10...12..20...30... as required
Thickness	Customized
Shape	As required
Surface Treatment	Painting, white oxygen, Electroless Nickel plating, electrophoresis, powder coating, Brush, (as required)
Package	Wooden cases; or as required
Certificate	ISO9001, RoHS
Welding technology	Spot welding, vacuum brazing
Function	EMI Shielding, Air Ventilation, Cooling, Corrosion Resistance
Application	EMI shielding vent, flow straightener, railways, Marine, aviation&aerospace, wind energy, defence, gas seals, communications, medical and other industries. etc
