Honeycomb Model: Precision Air Flow Straightener for Tunnels

honeycomb model,air flow straightener,honeycomb in wind tunnel is a key solution in the manufacturing industry, specifically within Specialized equipment manufacturing and Scientific research and experimental equipment manufacturing. This article explores how Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd. supports professionals with durable, high-performance products, and explains why this product is an ideal choice for businesses in these sectors.

Table of Contents

• [honeycomb model,air flow straightener,honeycomb in wind tunnel] Overview
• Benefits & Use Cases of [honeycomb model,air flow straightener,honeycomb in wind tunnel] in Scientific research and experimental equipment manufacturing
• Cost, Maintenance & User Experience
• Sustainability & Market Trends in manufacturing
• Conclusion on [honeycomb model,air flow straightener,honeycomb in wind tunnel] from Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd.

[honeycomb model,air flow straightener,honeycomb in wind tunnel] Overview

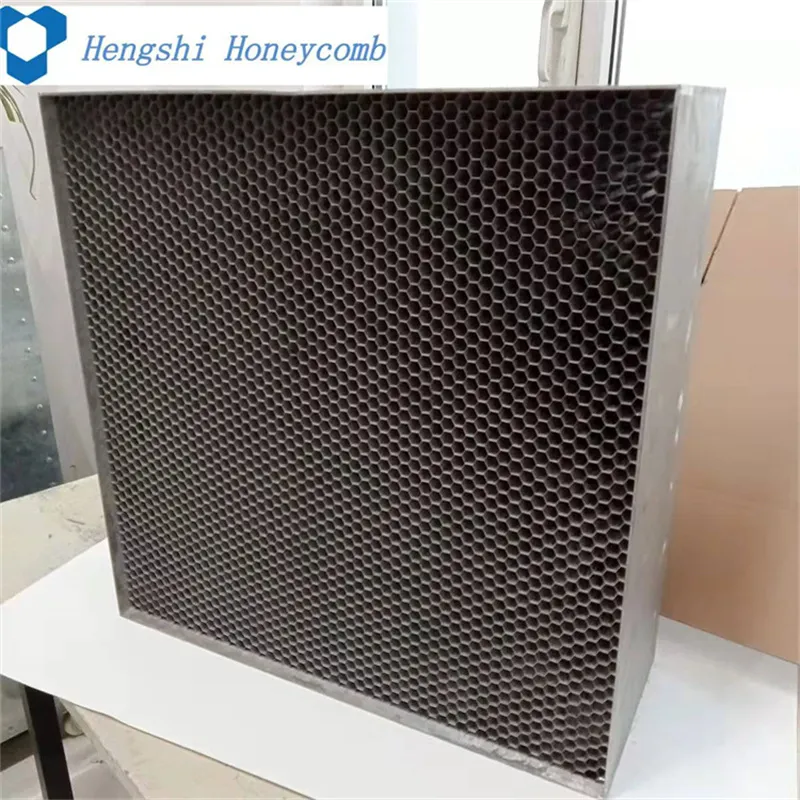

The honeycomb model—also known as an air flow straightener or honeycomb in wind tunnel—serves one purpose: deliver uniform, low-swirl, low-turbulence flow to your test section. By channeling the flow through thousands of precisely formed cells, the honeycomb removes lateral velocity components and conditions upstream disturbances from fans, elbows, and contractions. For scientific research and experimental equipment manufacturing, this component is foundational to repeatable aerodynamics, acoustics, and thermal testing.

Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd. designs and manufactures honeycomb flow straighteners with high geometric fidelity and consistent cell alignment. Typical options include aluminum, stainless steel, or composite constructions; cell sizes from fine (e.g., 3–6 mm) to coarse; and tailored length-to-hydraulic-diameter (L/D) ratios suited to subsonic, low-speed, or specialty benches. Modular panels can integrate with existing frames or be supplied as drop-in cassettes. In recent lab deployments, engineering teams reported faster tunnel commissioning and improved data stability after upgrading to Hengshi’s precision honeycomb assemblies, validating both product quality and manufacturing reliability.

Benefits & Use Cases of [honeycomb model,air flow straightener,honeycomb in wind tunnel] in Scientific research and experimental equipment manufacturing

Across aerospace, automotive, UAV, HVAC, turbomachinery, and academic wind tunnels, an air flow straightener is the keystone for accurate measurements. By mitigating swirl and evening velocity profiles, the honeycomb model helps reduce measurement scatter, shorten averaging time, and improve correlation to CFD. When combined with screens and a well-designed contraction, a honeycomb in wind tunnel applications can elevate test quality from proof-of-concept to publishable-grade data.

Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd. brings competitive advantages that matter to B2B decision makers: tight tolerances on cell geometry and squareness, high panel flatness, robust frames, and surface treatments that resist corrosion and fouling. Custom L/D, cell size, and panel thickness are engineered to meet target turbulence intensity and pressure-drop budgets. For OEMs and labs that retrofit legacy tunnels, Hengshi’s modular cassettes reduce downtime and simplify alignment, while edge conditioning minimizes boundary effects in the test section. The result is more stable baselines, higher test throughput, and confidence in cross-program comparability.

Cost, Maintenance & User Experience

Total cost of ownership favors a well-built honeycomb: durable materials, stable geometry, and simple upkeep translate into years of consistent performance. Hengshi’s solutions are engineered to balance pressure drop with straightening effectiveness, helping keep fan power and operating costs under control. The modular design eases logistics and installation, while protective finishes support long service life in humid or dusty environments.

Maintenance is straightforward. Most users schedule periodic visual inspections, gentle vacuuming or low-pressure air cleaning, and occasional wet washing when contaminants accumulate. Because the cells retain shape and alignment, calibration cycles and test reruns are reduced—an ROI driver for busy labs. Customers in specialized equipment manufacturing report improved data repeatability and shorter commissioning times after standardizing on Hengshi honeycomb panels. Documentation packages, dimensional reports, and clear installation guidance further enhance user experience and reduce ramp-up risk for new test facilities.

Sustainability & Market Trends in manufacturing

Energy-efficient testing is a rising priority. A precision honeycomb straightener designed for minimal pressure drop can reduce fan loads, contributing to lower energy consumption across long test campaigns. Materials selection also matters: aluminum and stainless options can support recycled content strategies, and durable finishes extend useful life, reducing replacement cycles and waste.

Market trends in specialized research equipment point to tighter uncertainty budgets, greater integration with digital twins, and an expansion of wind tunnel use cases—from EV and UAV aerodynamics to aeroacoustics and thermal management. Forward-looking suppliers like Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd. respond with engineering-driven customization, rigorous inspection, and agile lead times. By pairing precision manufacturing with practical sustainability considerations—such as optimized designs that meet flow targets at lower operating power—Hengshi helps labs and OEMs meet technical and environmental objectives simultaneously.

Conclusion on [honeycomb model,air flow straightener,honeycomb in wind tunnel] from Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd.

For B2B innovators in manufacturing, specialized equipment manufacturing, and scientific research equipment, the honeycomb model—your essential air flow straightener—enables reliable, repeatable, and efficient wind tunnel testing. Hengshi (Langfang) Precision Machinery Manufacturing Co., Ltd. combines precision engineering, durable materials, and configurable designs to deliver measurable testing confidence and long-term value.
